Stitch4D: Sparse Multi-Location 4D Urban Reconstruction via Spatio-Temporal Interpolation
Reconstruction Videos
Free-viewpoint Rendering — Urban Area 1
Free-viewpoint Rendering — Urban Area 2
Scalability to Multiple Videos
Stitch4D scales to an arbitrary number of input videos, enabling 4D reconstruction over larger spatial regions by stitching additional panoramic observations.
Free-viewpoint Rendering — Urban Area 1 (Additional)
Free-viewpoint Rendering — Urban Area 2 (Additional View 1)
Free-viewpoint Rendering — Urban Area 2 (Additional View 2)
Abstract

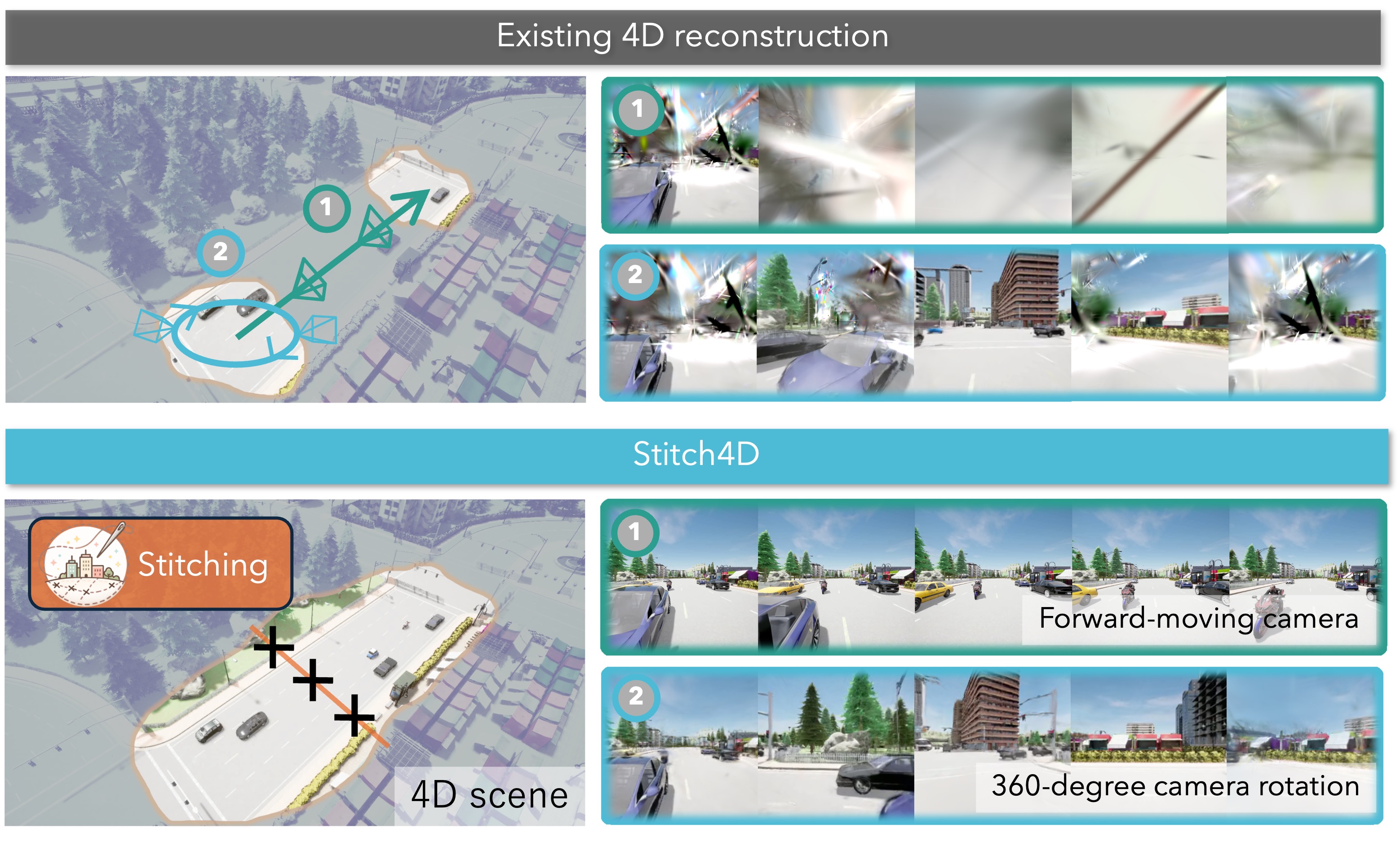

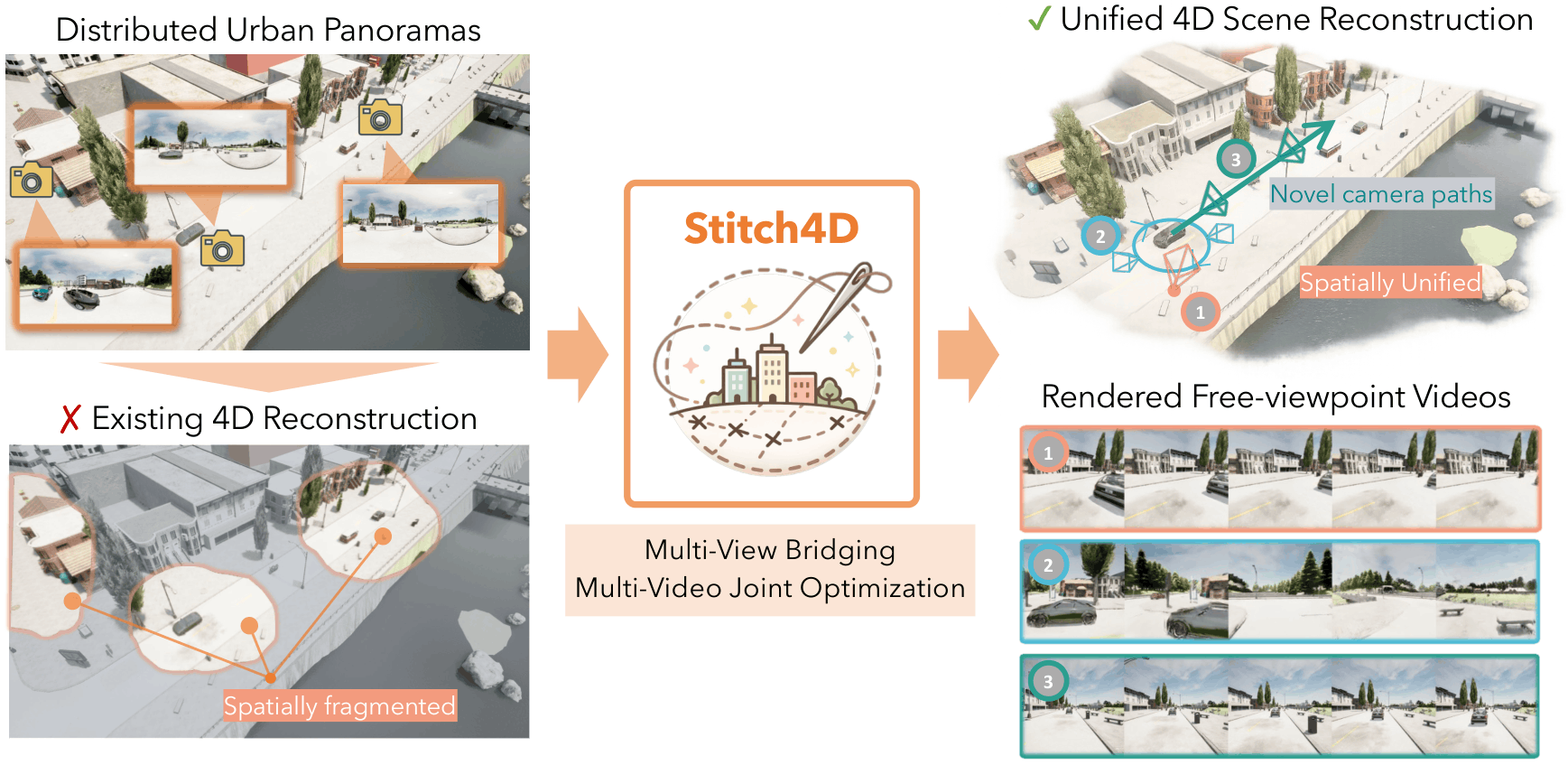

Dynamic urban environments are often captured by cameras placed at spatially separated locations with little or no view overlap. However, most existing 4D reconstruction methods assume densely overlapping views. When applied to such sparse observations, these methods fail to reconstruct intermediate regions and often introduce temporal artifacts. To address this practical yet underexplored sparse multi-location setting, we propose Stitch4D, a unified 4D reconstruction framework that explicitly compensates for missing spatial coverage in sparse observations. Stitch4D (i) synthesizes intermediate bridge views to densify spatial constraints and improve spatial coverage, and (ii) jointly optimizes real and synthesized observations within a unified coordinate frame under explicit inter-location consistency constraints. By restoring intermediate coverage before optimization, Stitch4D prevents geometric collapse and reconstructs coherent geometry and smooth scene dynamics even in sparsely observed environments. To evaluate this setting, we introduce Urban Sparse 4D (U-S4D), a CARLA-based benchmark designed to assess spatiotemporal alignment under sparse multi-location configurations. Experimental results on U-S4D show that Stitch4D surpasses representative 4D reconstruction baselines and achieves superior visual quality.

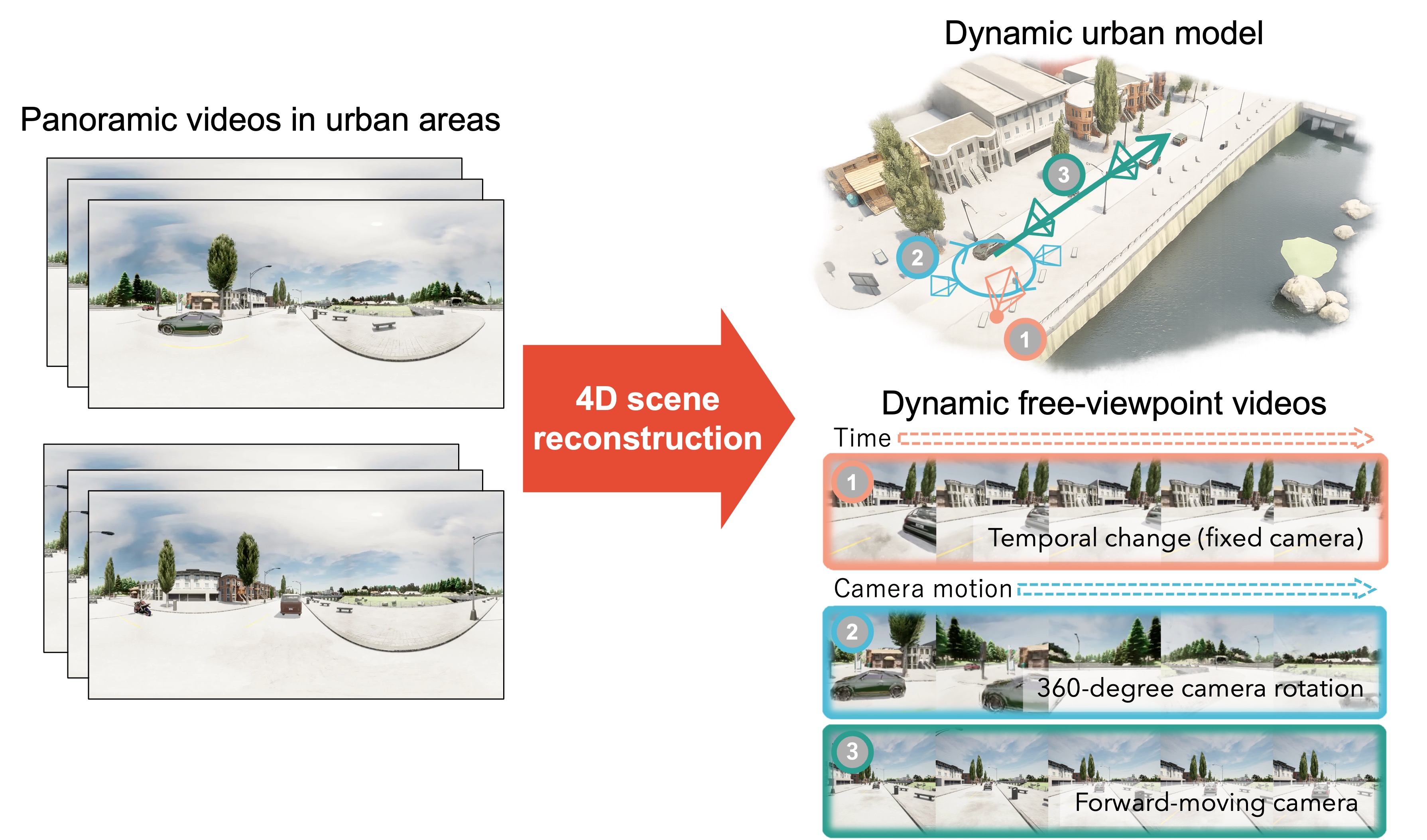

SP4DR: Sparse Multi-Location 4D Reconstruction
Method

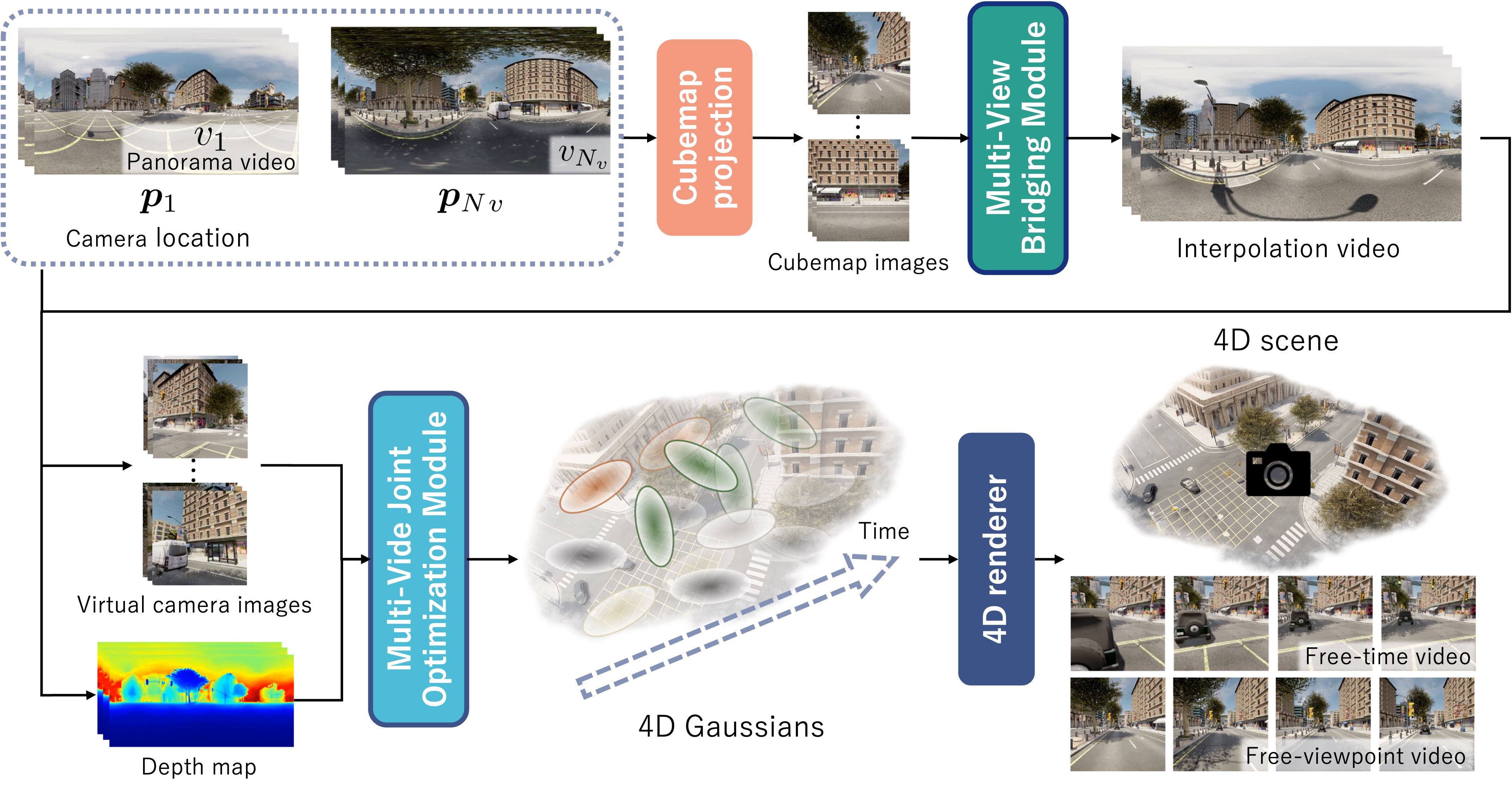

Overall architecture of Stitch4D.

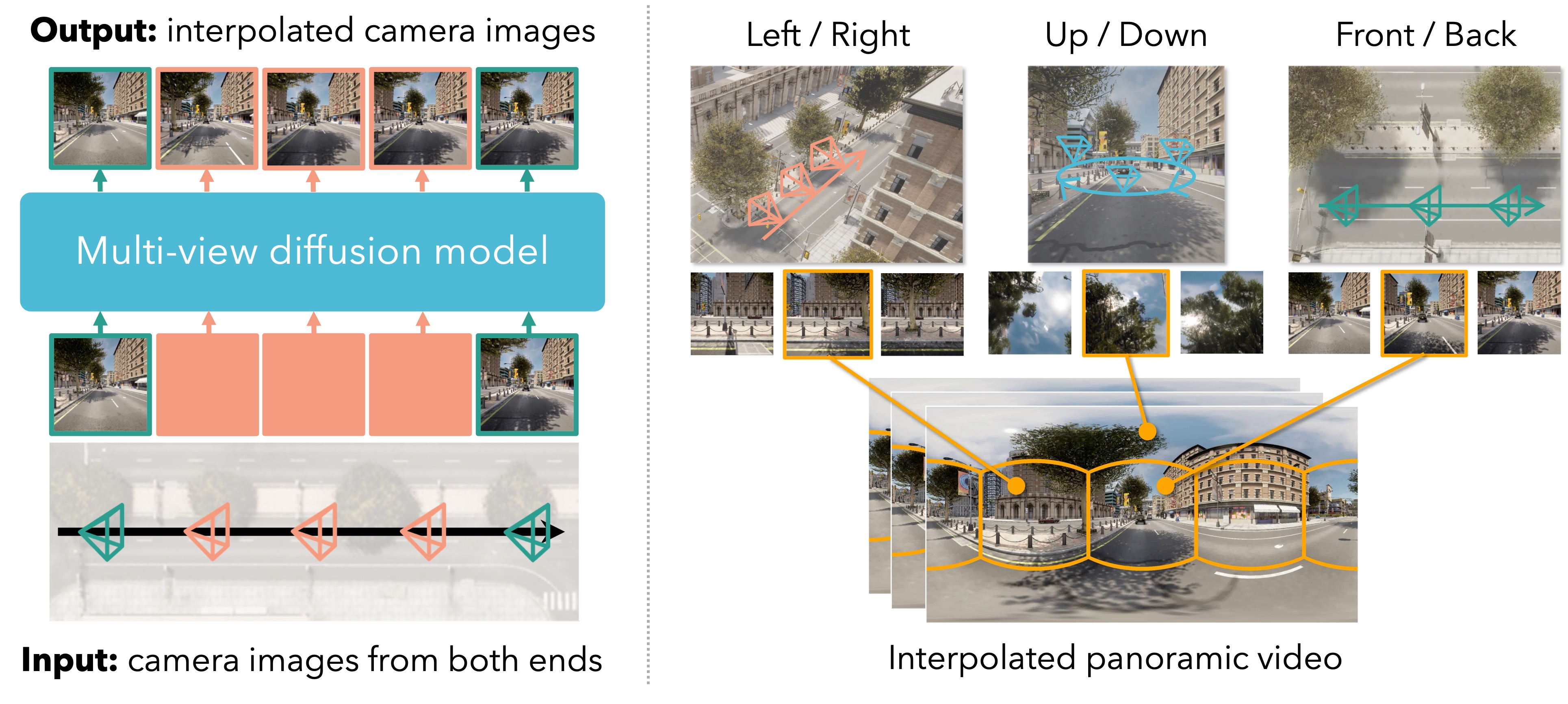

Multi-View Bridging Module (MVBM).

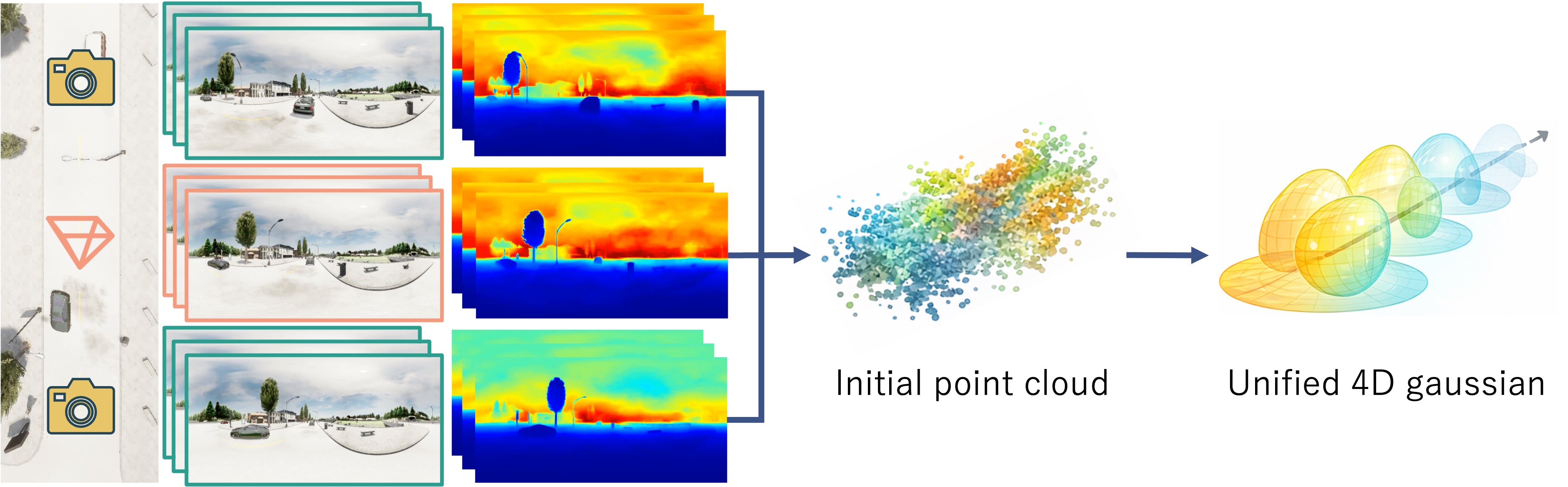

Multi-Video Joint Optimization Module (MVJOM).

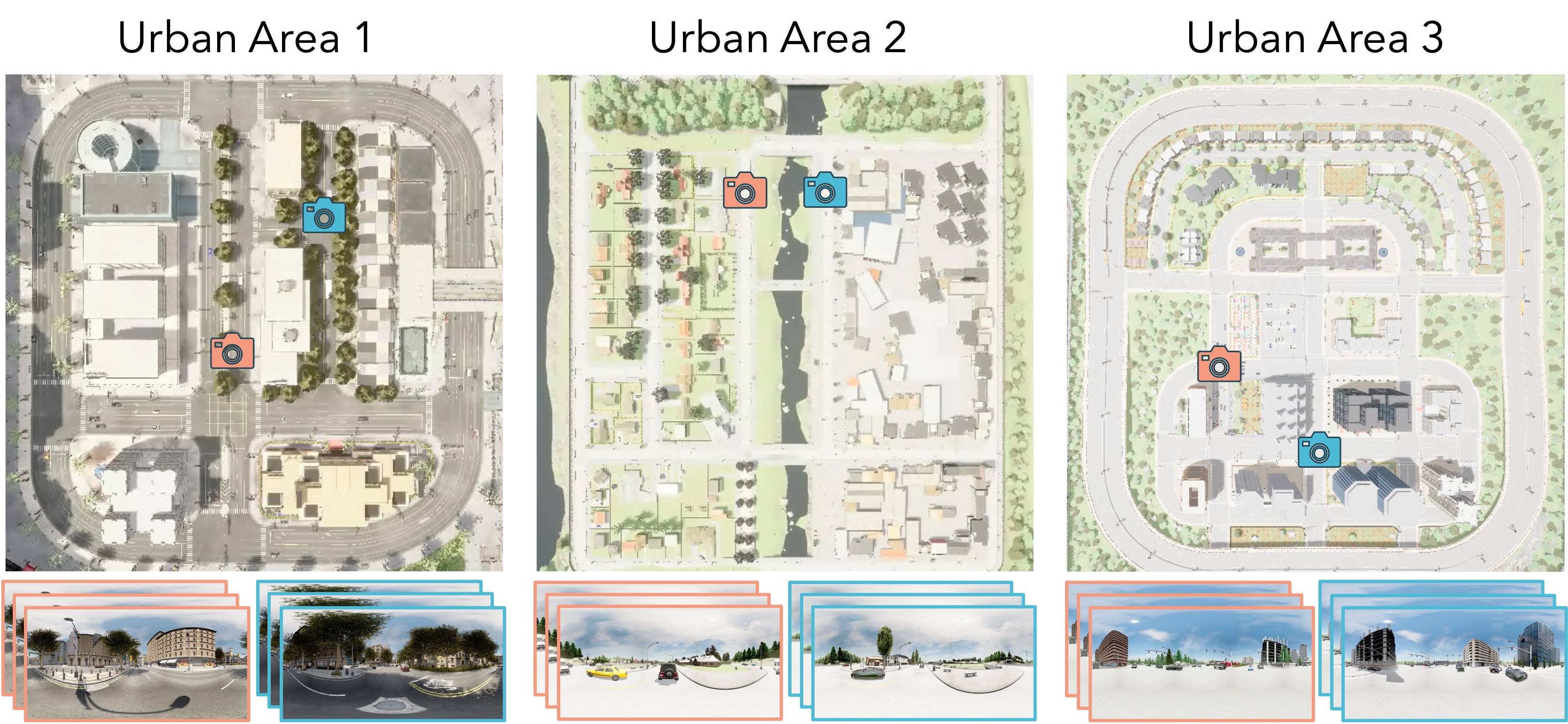

U-S4D Benchmark
Quantitative Results
Full Reconstruction Setting
| Method | Trajectory Interpolation | Seen-viewpoints | ||||
|---|---|---|---|---|---|---|
| PSNR [dB] ↑ | SSIM ↑ | LPIPS ↓ | PSNR [dB] ↑ | SSIM ↑ | LPIPS ↓ | |
| 4DGS | 11.51 | 0.28 | 0.84 | 15.79 | 0.58 | 0.84 |
| SpacetimeGS | 13.25 | 0.54 | 0.67 | 17.97 | 0.79 | 0.32 |
| FreeTimeGS | 11.90 | 0.50 | 0.76 | 16.77 | 0.71 | 0.42 |
| Stitch4D (Ours) | 15.81 | 0.59 | 0.50 | 25.62 | 0.92 | 0.14 |
Temporal Split Setting
| Method | Trajectory Interpolation | Seen-viewpoints | ||||
|---|---|---|---|---|---|---|
| PSNR [dB] ↑ | SSIM ↑ | LPIPS ↓ | PSNR [dB] ↑ | SSIM ↑ | LPIPS ↓ | |
| 4DGS | 10.54 | 0.25 | 0.80 | 13.78 | 0.52 | 0.64 |
| SpacetimeGS | 13.02 | 0.53 | 0.68 | 17.42 | 0.77 | 0.34 |
| FreeTimeGS | 11.94 | 0.50 | 0.76 | 16.22 | 0.69 | 0.43 |
| Stitch4D (Ours) | 15.53 | 0.58 | 0.51 | 24.12 | 0.90 | 0.15 |
Qualitative Results

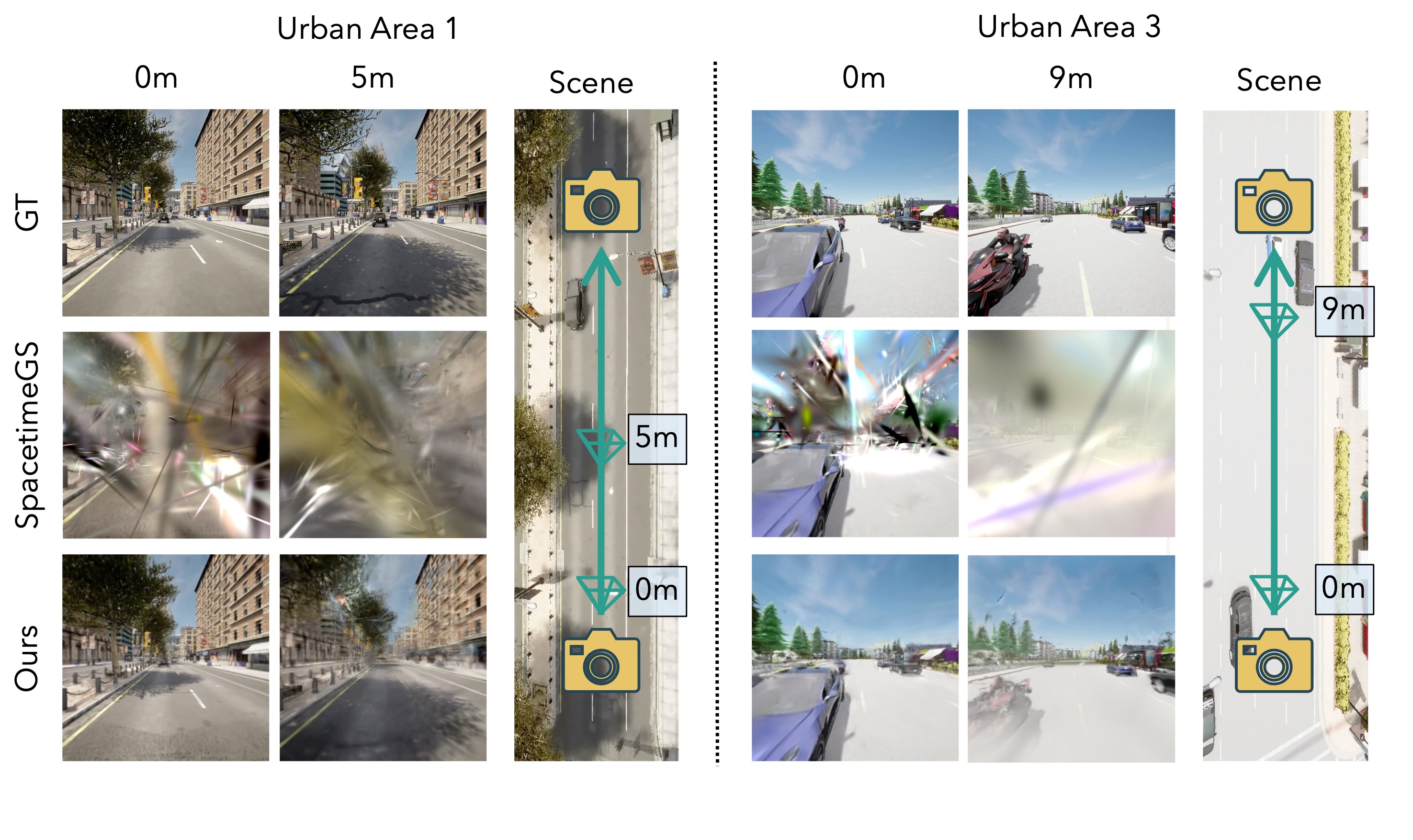

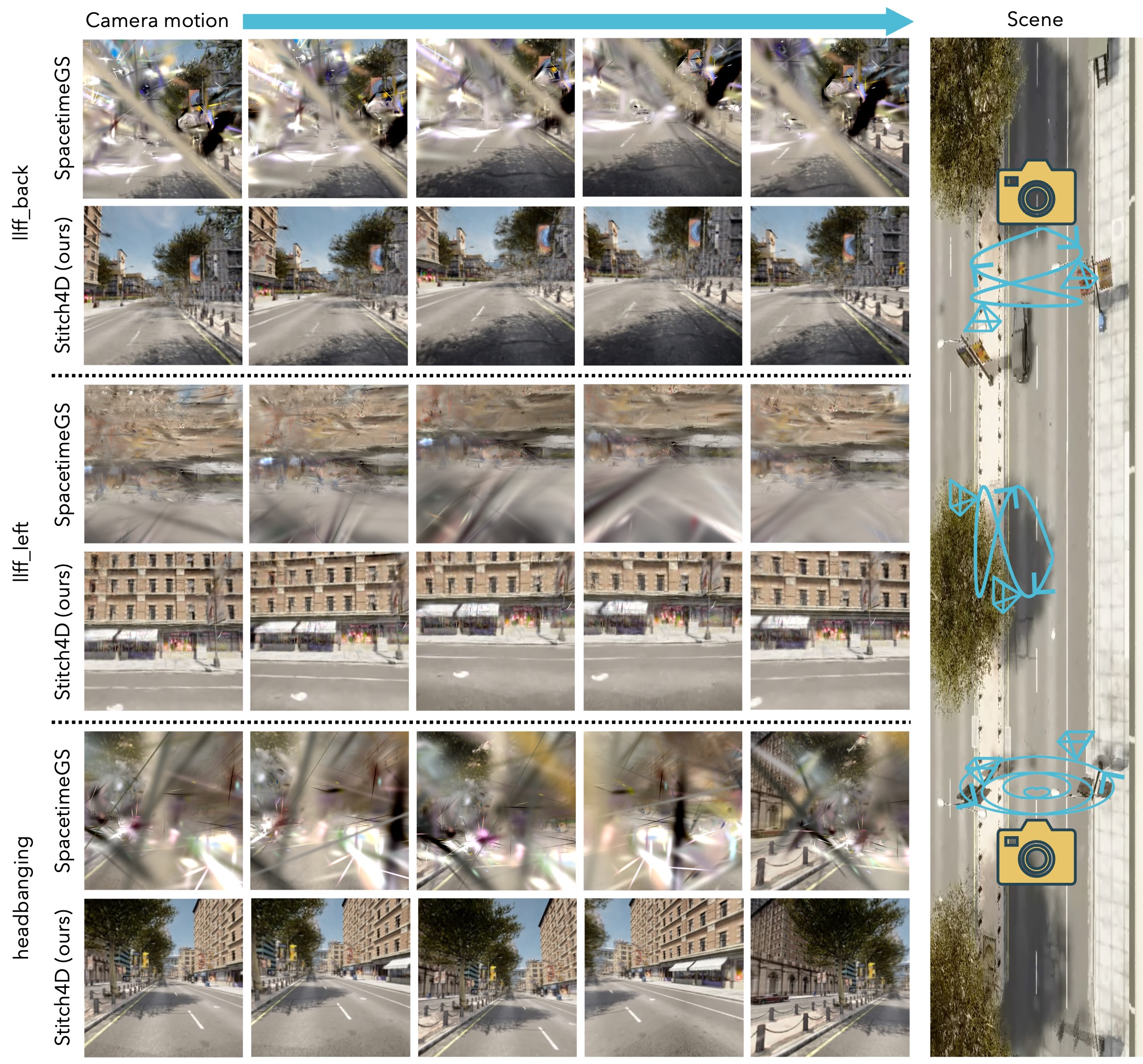

Trajectory Interpolation (Full Reconstruction)

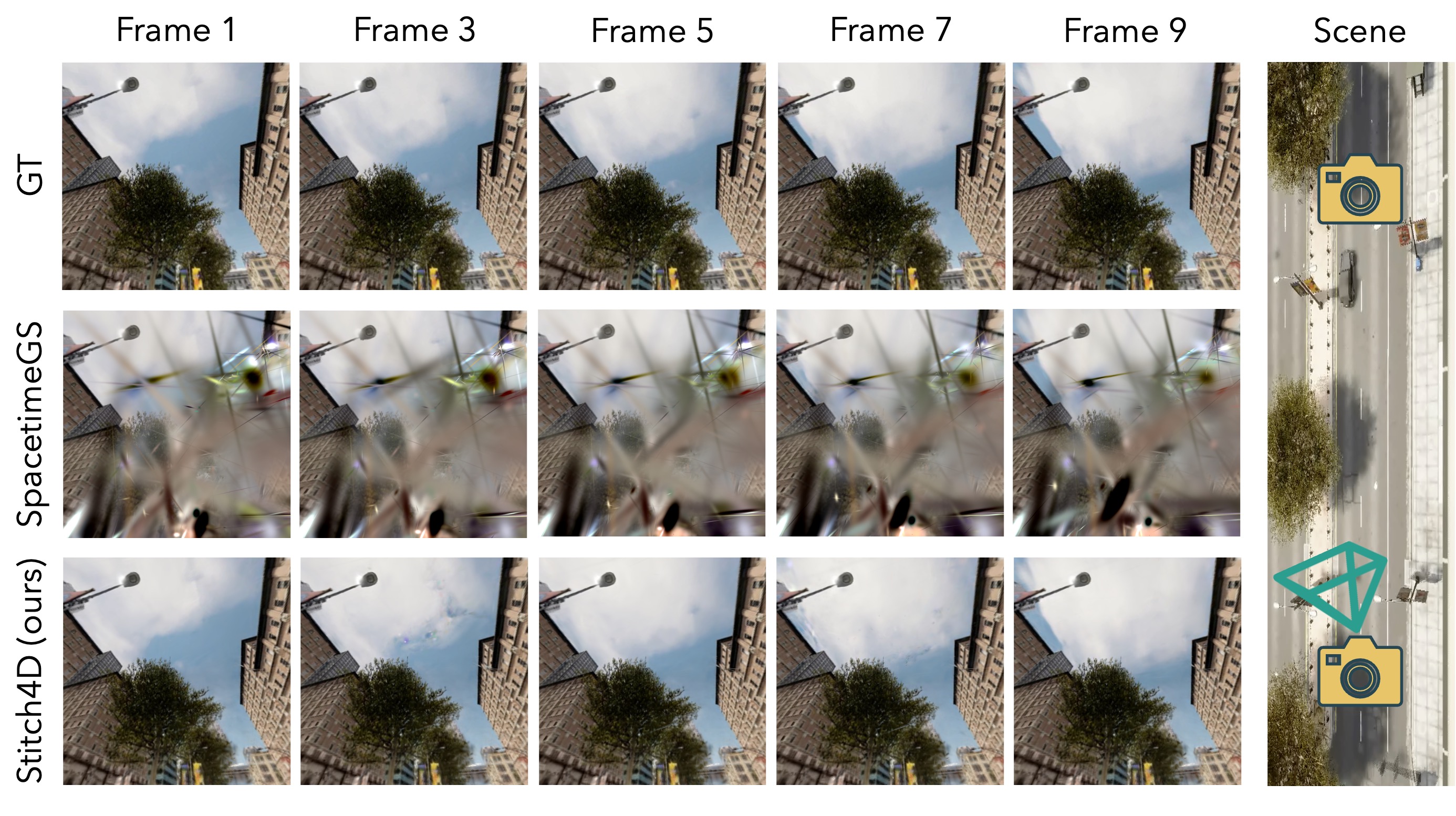

Temporal Split (Seen-viewpoints) — Urban Area 1

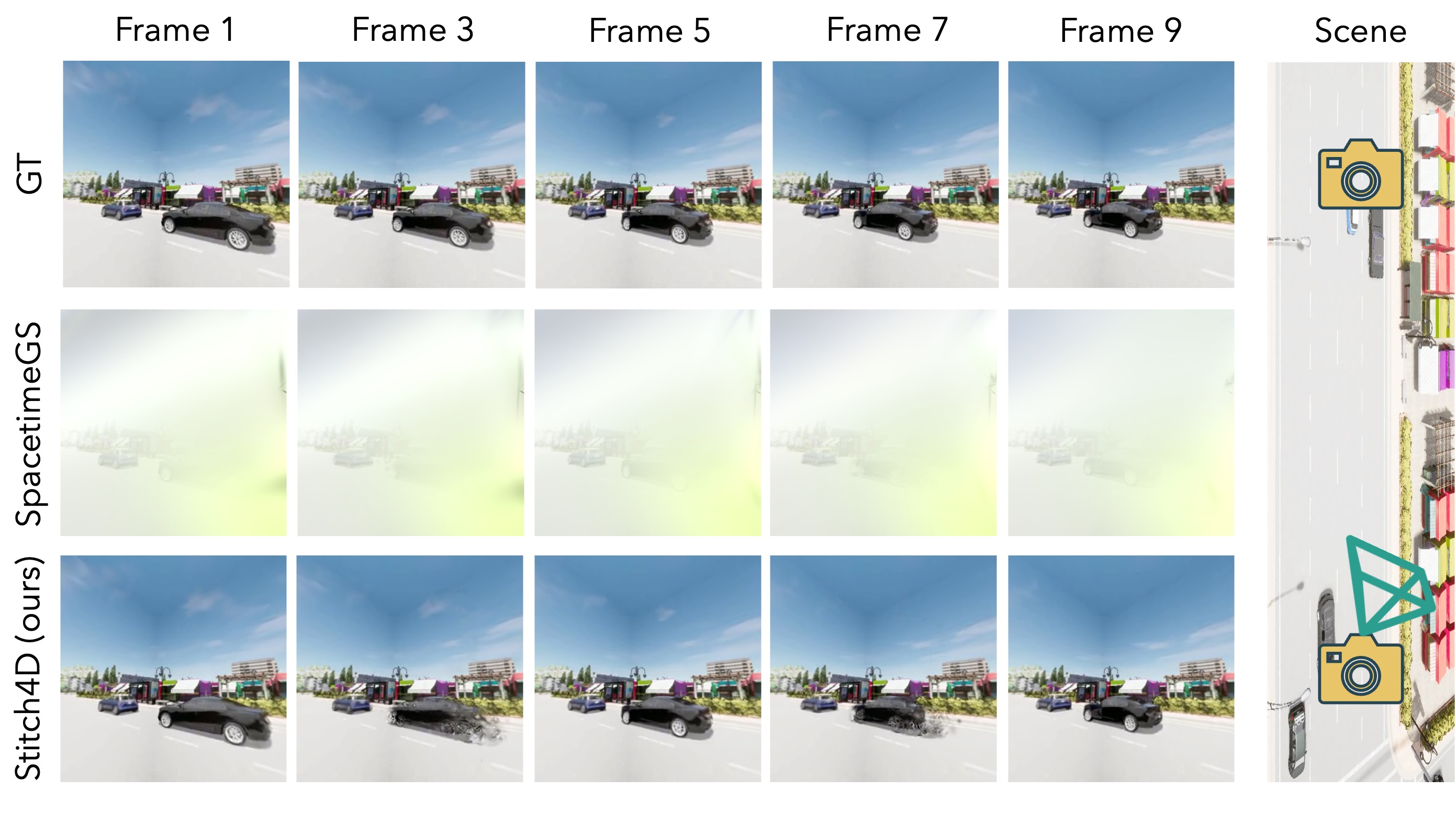

Temporal Split (Seen-viewpoints) — Urban Area 3
Additional Qualitative Results

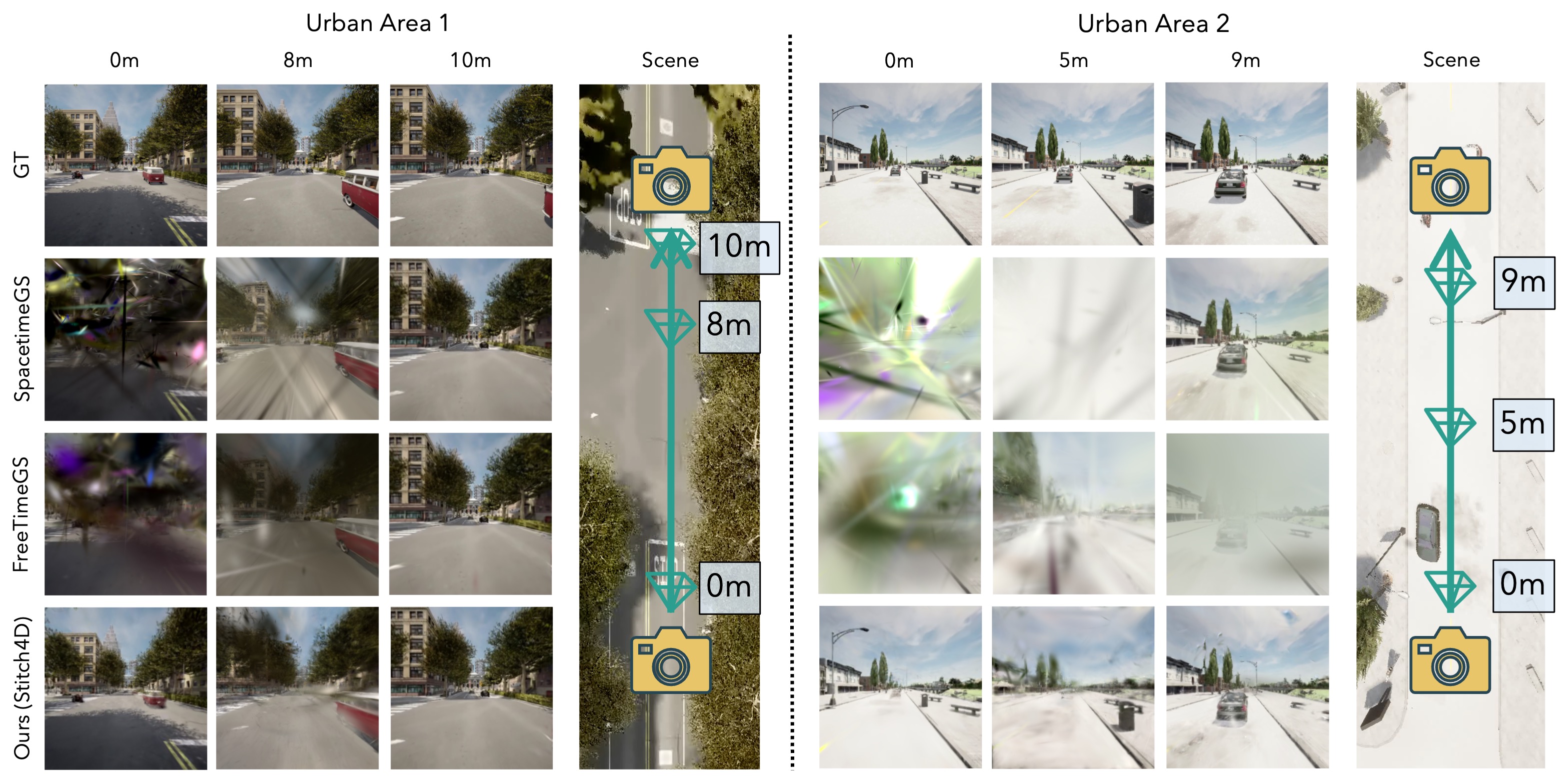

Trajectory Interpolation (Additional)

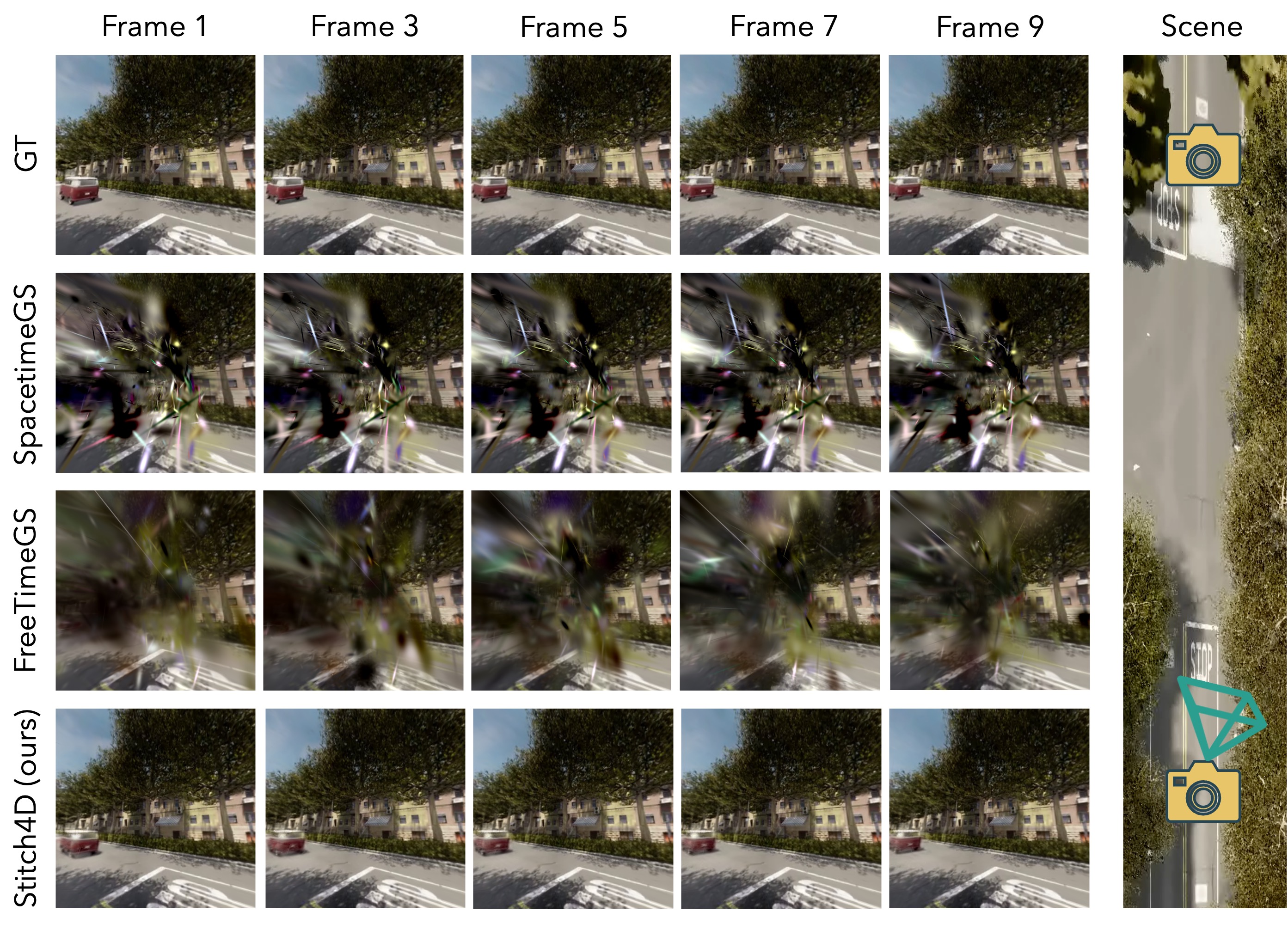

Seen-viewpoints — Urban Area 1 (Additional)

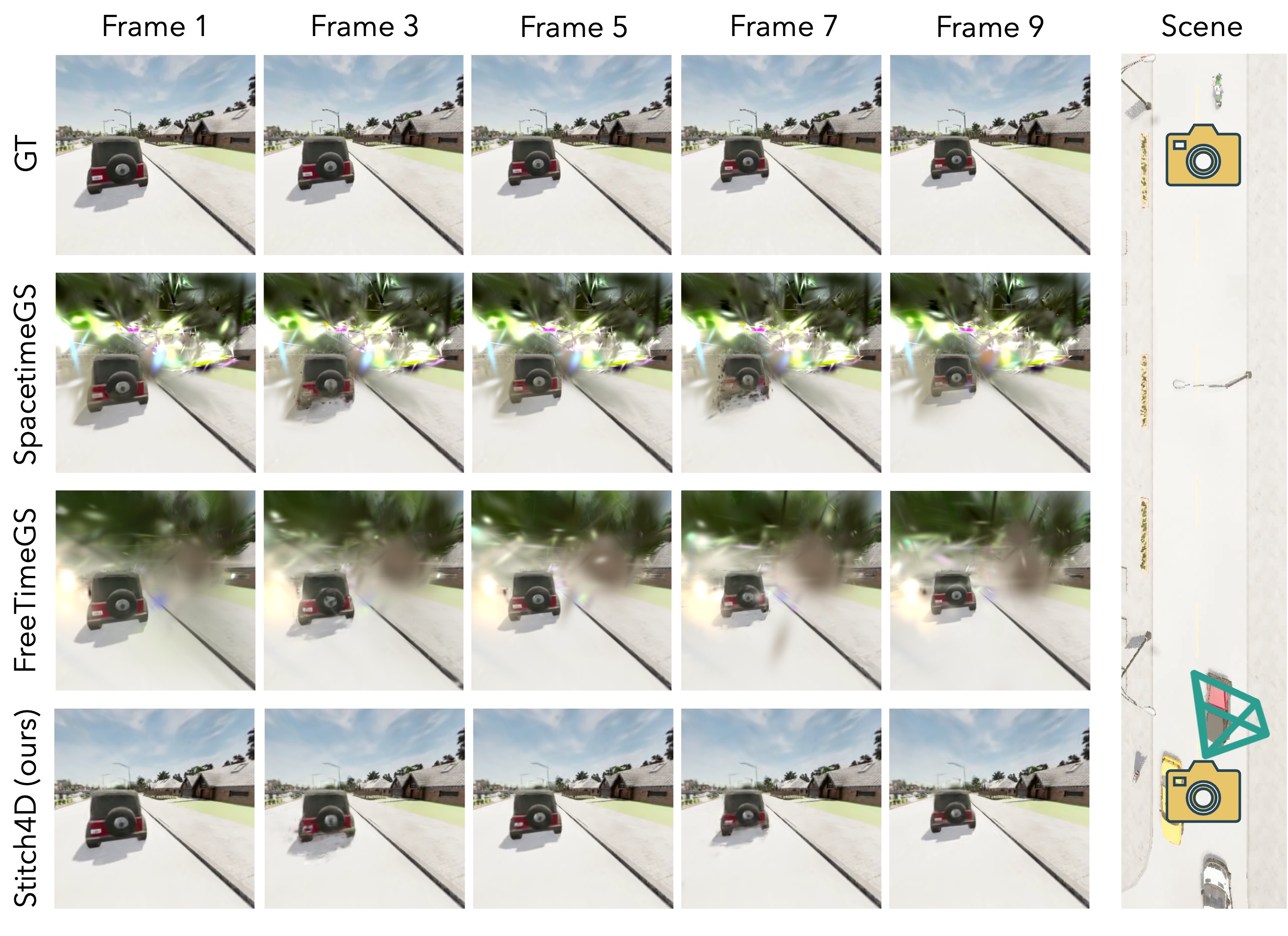

Seen-viewpoints — Urban Area 2
Free-viewpoint Trajectory — Urban Area 1

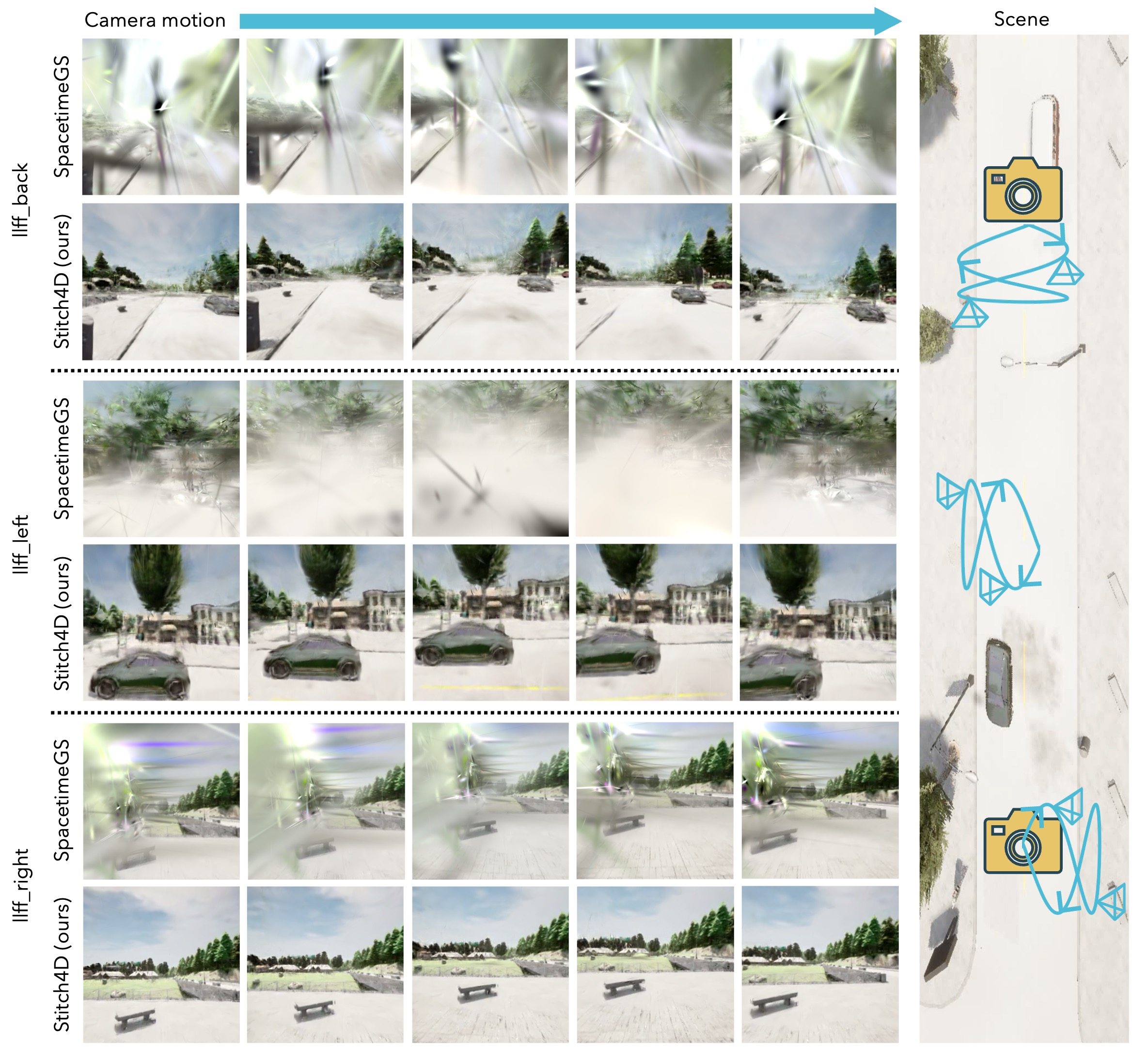

Free-viewpoint Trajectory — Urban Area 2
Full Trajectory — Urban Area 1
Full Trajectory — Urban Area 2

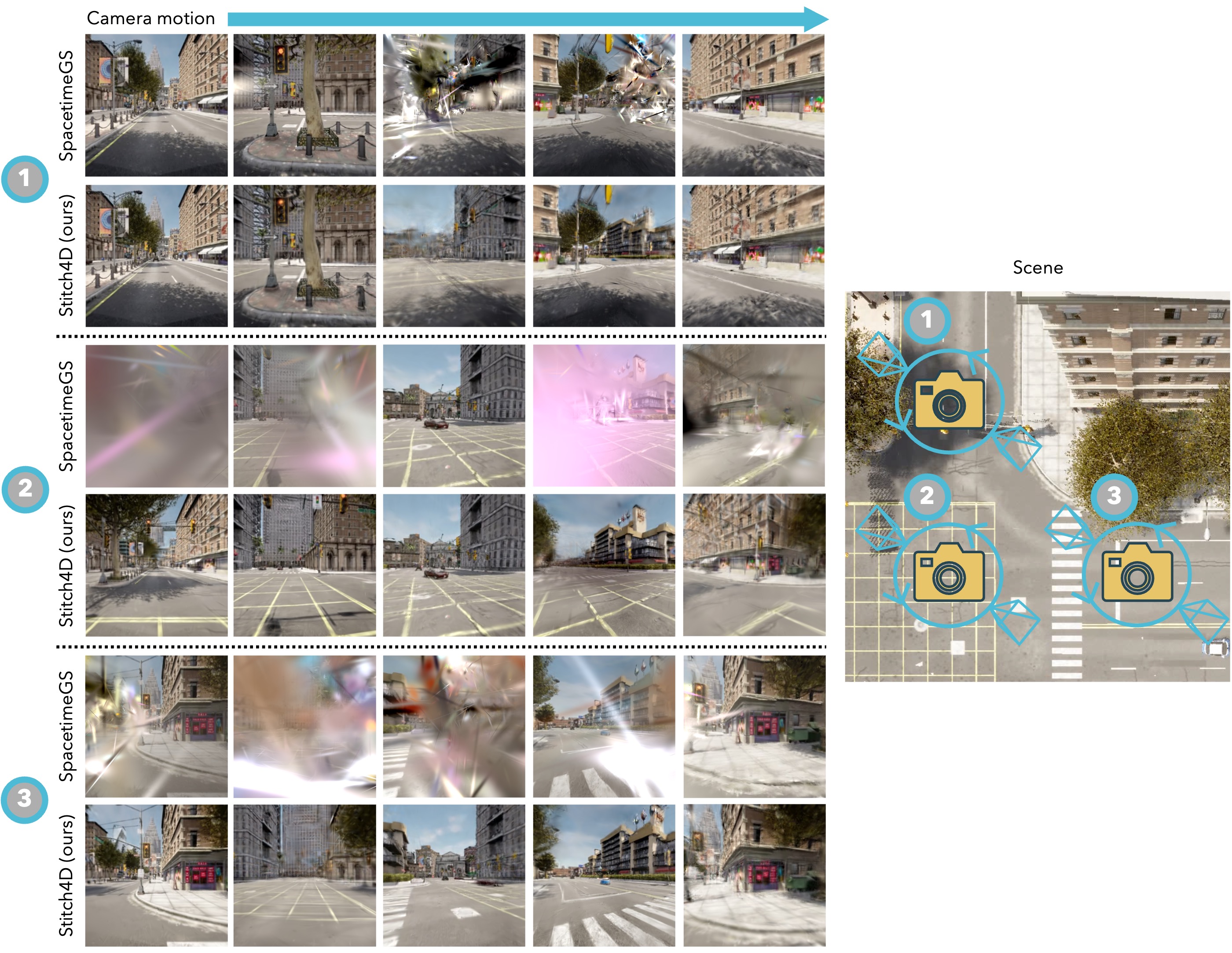

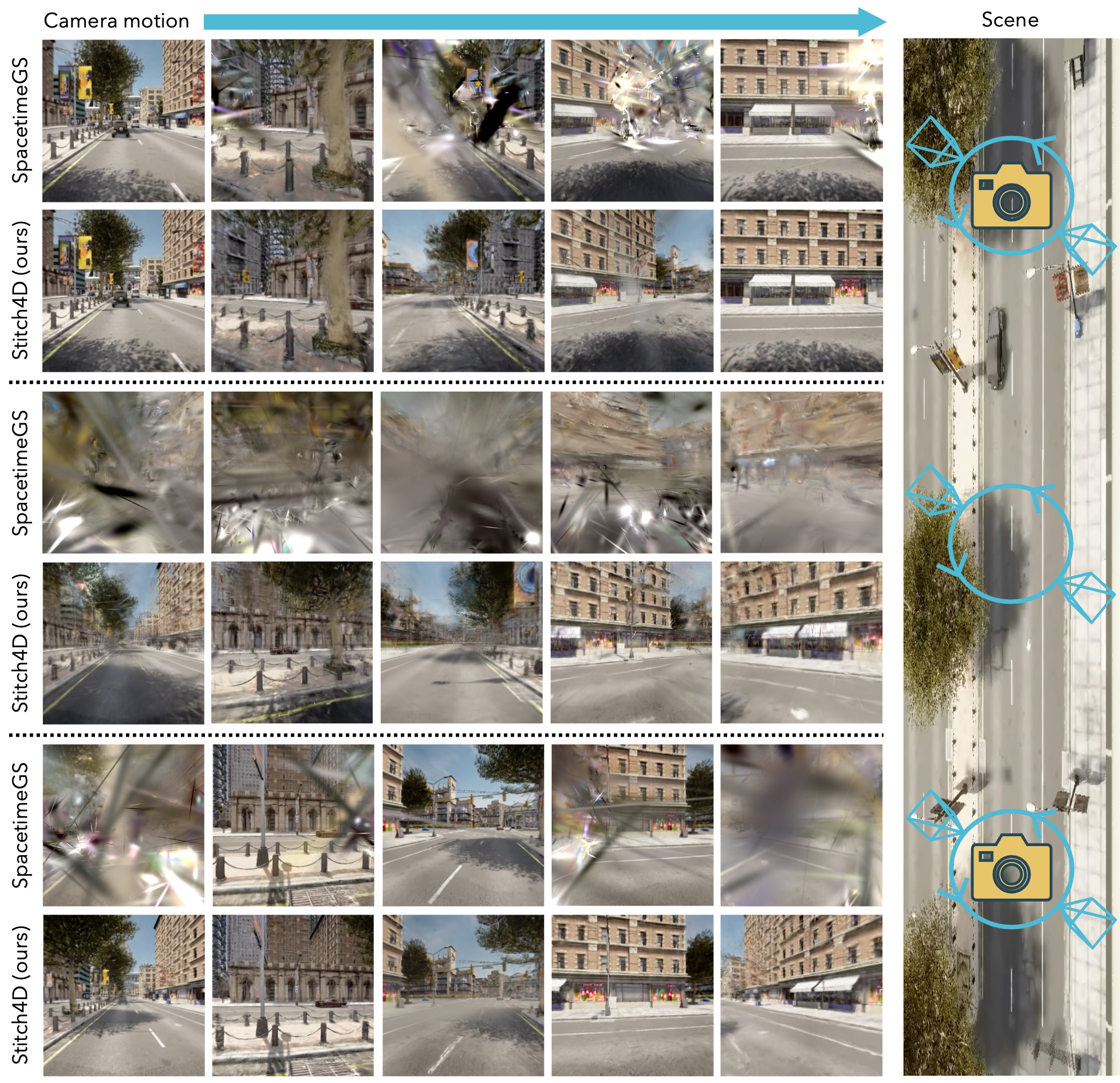

Three-Input Reconstruction — Rotateshow

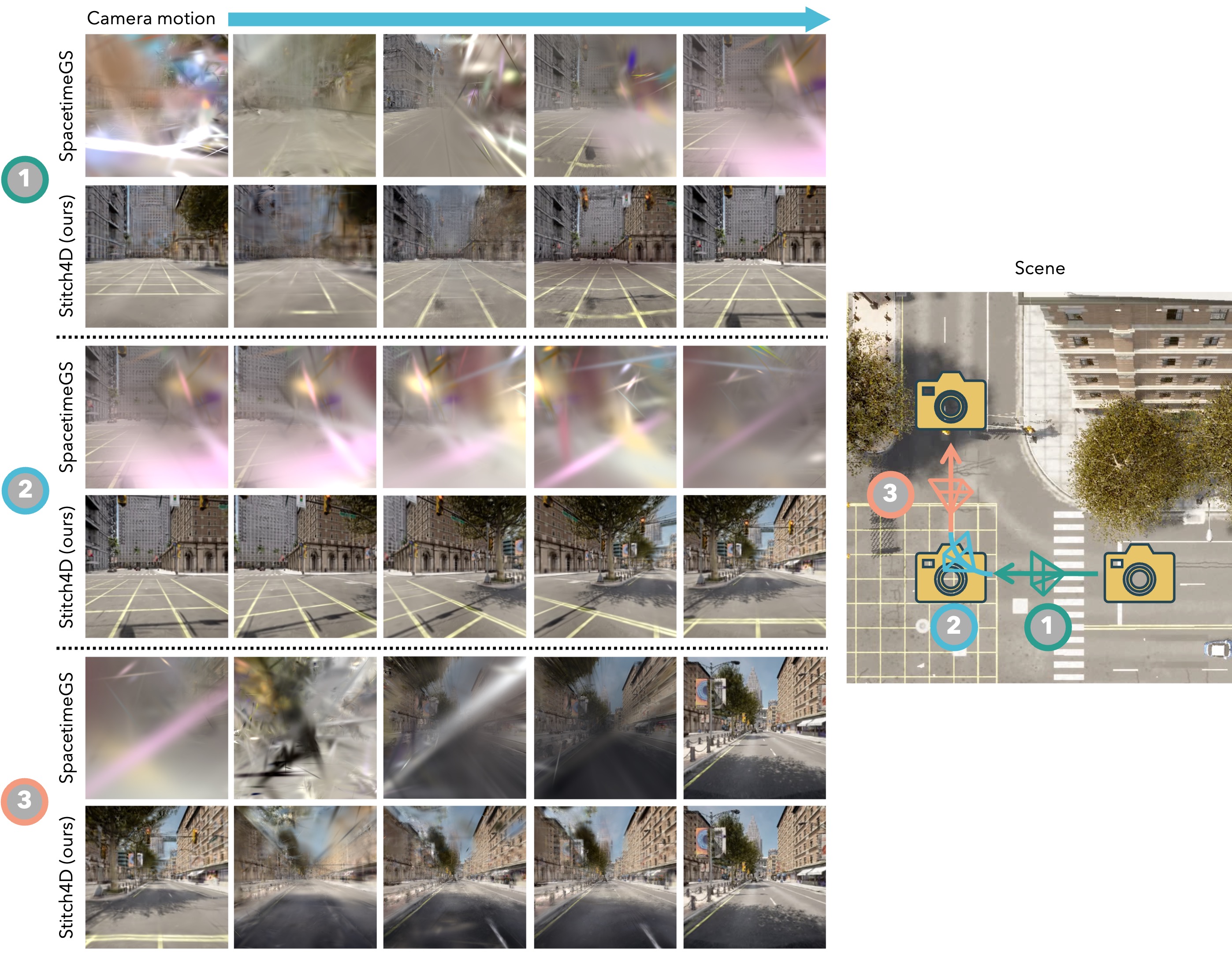

Three-Input Reconstruction — LBRF
BibTeX
@article{kogure2026stitch4d,
title={Stitch4D: Sparse Multi-Location 4D Urban Reconstruction via Spatio-Temporal Interpolation},
author={Kogure, Hina and Katsumata, Kei and Miyanishi, Taiki and Sugiura, Komei},
journal={arXiv preprint arXiv:2604.07923},
year={2026}
}
